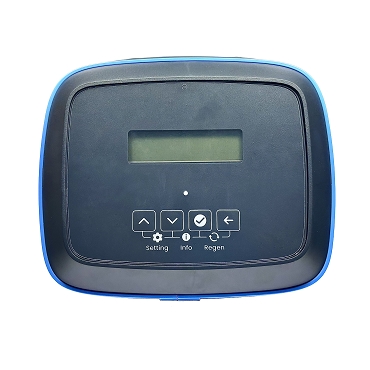

742 Logix Electronic Control Timer Assembly on the Autotrol 268 Performa Water Softener Application Valve for use Brine Tanks.
The Performa 268/742 computer control system will operated on the Days you Program into it.
This is not a metered demand controller ( that would be the 760 or 762 Logix ). Yoke or By Pass or Adapter tails are all Optional items sold Separately....
Most people are ordering "replacement" valve of same type, so we do not INCLUDE these connections with the Valve.
You must order them in addition to the actual valve, if you need them.
Valve body is designed with reinforced NORYL construction to provide you with an uncommonly reliable appliance. The inherent reliability for the system means a long life of efficient, trouble-free, uninterrupted soft water luxury
Comes with Cover, and transformer ( please select Indoor or Outdoor ).
Here's a few of the key features of the Logix controlled valve:
* Single motor provides all the power to turn camshaft - no solenoids are needed!
* Unique camshaft / flapper valve design - no dynamic seals (such as piston and seal or rotary discs) that could cause leakage through wear or fatigue.
* Direct acting system functions independent of water pressure. No pistons or diaphragms that require a minimum water pressure to operate.
* Valve may be indexed manually without power in the event of an extended power outage.
5 year parts warranty, owners/service manual, and our technical support number included with each new valve.
< How to Replace Your Old Valve >
Link to Programming GUIDE
And the distance between the " dead center" of each connection is 5 inches.
And the bottom of the connections is 2 inches from the top of tank opening.
