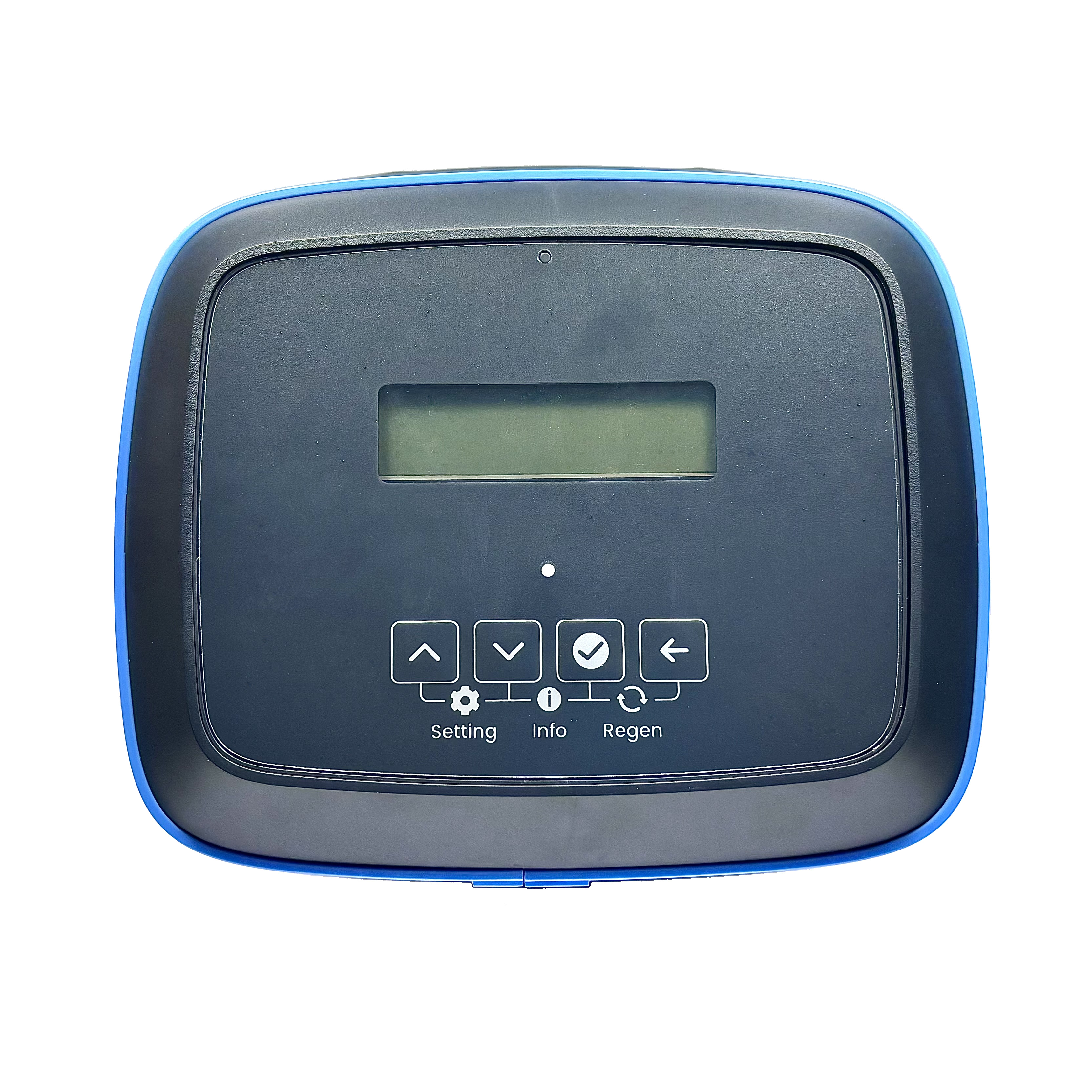

The Performa 268 EiQ Timer valve will be operated on the Days you Program into it.
This is not a metered demand controller ( that would be the AV268M-EIQ).
Replacement for 168 and 268 valves with 440 or 460TC or 740/742 Logix timers.
USER Guide ( short multi-language version ) = User Guide
Programming / Installers = Installer Manual
Autotrol / Pentair User Guide included with each new valve.
HOWEVER, you will need to download and read the Installer Manual,
And watch this Video for Start Up and Setting Directions
Includes: Upper and Lower Distributor in 1.05" size,
and
Free Dust Cover for the Valve body,
but NO OUTDOOR Cover currently available.
Therefore this valve should be protected from sunlight ( installed indoors or at least under protective cover / shed )
If this Valve is to replace an existing valve of the SAME type, then the existing By Pass or Piping Yoke will attach on to the valve. Otherwise you will NEED either a standard Noryl plastic piping connection in either 3/4" or 1" with all valves purchased, OR a By-Pass Option can be purchased separately ( NOTE: Adapter Kits used with By Pass are sold Separately also ).
Yoke or By Pass ( 1265 Performa ) and / or Adapter tails are
all Optional items sold Separately.... ( see Related Products )
Most people are ordering "replacement" valve of same type,
so we do not INCLUDE these connections with the Valve.
You must order them in addition to the actual valve, if you need them.
NOTE: The Performa 268 Softener REQUIRES an Air Check in the Brine Tank, unlike the Autotrol 155 or 255 which usually have an Air Check on the Valve.
And the distance between the " dead center" of each connections is 5 inches.
And the bottom of the connections is 2 inches from the top of tank opening.
< How to Replace Your Old Valve >
Promo Video = https://youtu.be/VVBnhJ2gf3s
And watch this Video for Start Up and Setting Directions
And the distance between the " dead center" of each connection is 5 inches.
And the bottom of the connections is 2 inches from the top of tank opening.
